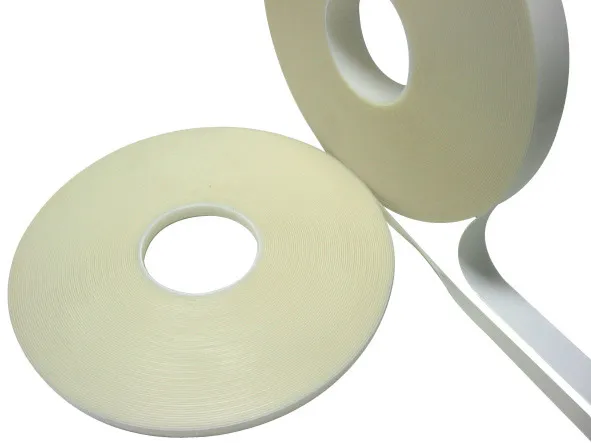

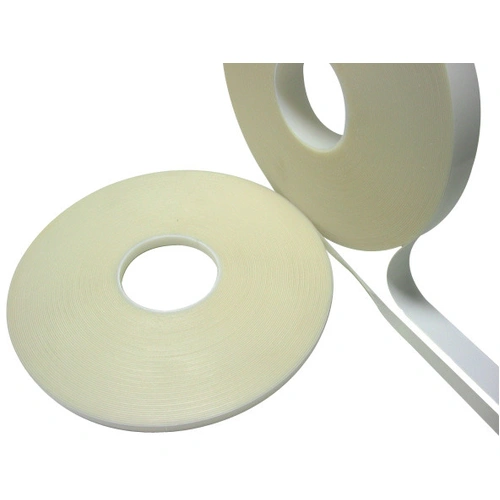

5300 Series Very High Bond Mounting Double Sided Foam Tape
Translucent /Clear Solid Acrylic Very High Bond Tape
5300 Series Very High Bond Mounting Double Sided Tape
The 5300 Series offers a high performance consistent lasting superior bond to most surfaces. This solid translucent acrylic mass premium grade double sided tape with excellent U.V. resistance. The 5300 series tape is Ideally suited for high strength applications that require permanent bond internally or externally such as metal to metal and because it is translucent it blends into the background. 5300 series passes UL 94HB Horizontal Burn Test, It does not absorb moisture, withstands thermal movement and possesses sound deadening and anti-vibration properties
Available in two standard thicknesses and various widths
5310 - 1.00mm thick x 33m
5320 - 2.03mm thick x 33m
Go to the More Information tab above to view the product Data Sheets
Data Sheet for 2-DS-VHB-5310
High Bond Foam Tape Application Guide -Oct 2022
Listing and application descriptions for the High Bond Foam Tape range - Oct 2022
5300 TECHNICAL SPECIFICATIONS:
Adhesion: 90º - 24hr peel - 2,536gm/cm
500 hour static shear 0.15Kg/cm²
Dynamic shear - 7.4Kg/cm²
72OC Static shear - 0.4Kg/cm (150hrs with no movement)
Density: - 1,000Kg/m³
Tensile Strength: - >14.06Kgs/cm²
Elongation: - >500%
Cold Slam Test - Pass at -30oC
Thermal Conductivity - 0.2 K
Service Temperature: - -40OC to +120oC
Recommended Application Temp: >10OC
