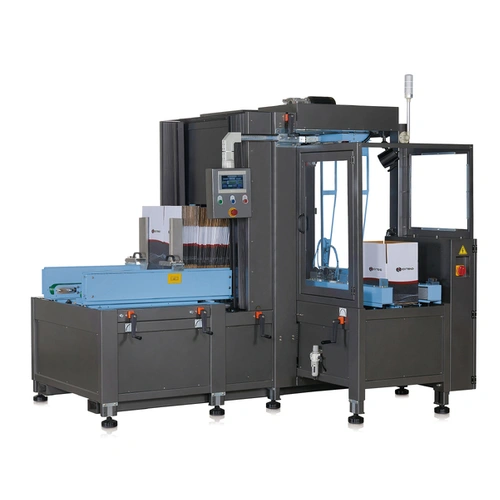

Carton Erector - Case Erector - 5-CE-GPEXC-137
Carton Erector - Case Erector - 5-CE-GPEXC-137

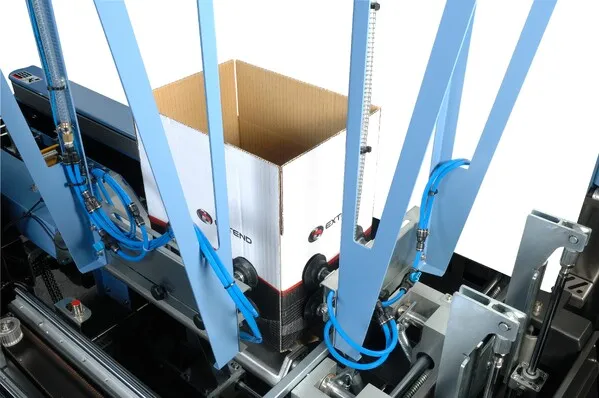

A box Case Erector is a carton forming machine, which takes a box mechanically from a stack of flat cardboard cartons, forms , folds and seals the bottom flap with packaging tape. Carton erectors and sealers offer an efficient and effective solution for packing and sealing Regular Slotted Container (RSC) cartons in end-of-line automation processes. These robustly built machines, equipped with tape seamlessly integrate with both manual and robotic loading stations.
MAJOR FEATURES
- TOUCH SCREEN CONTROL PANEL
- MEMORY PROGRAM FOR EASY OPERATION
- 5 EASY STEPS TO CHAGE CARTON SIZE
- SQUARE CASE ERECTING AND TRANSITION

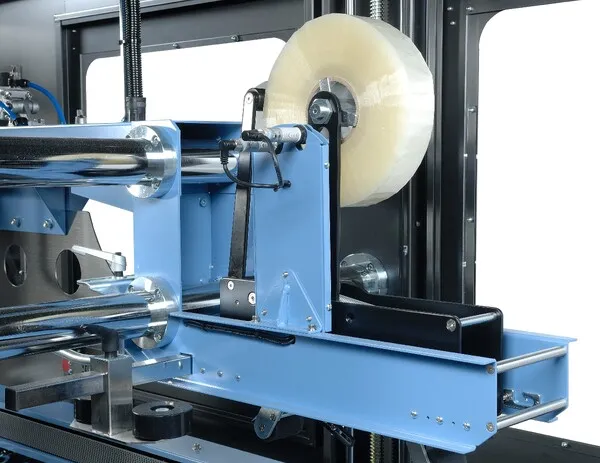

- TAPE LOW & OUT SENSOR WITH LIGHT TOWER
| POWER SUPPLY | 110V/230V/240V, 50/60HZ, 1-PH |
| POWER CONSUMPTION | 2kW |
| AIR CONSUMPTION | 20 L/CYCLE, 6KG/CM2 |
| TAPE WIDTH | 1 1/2", 2" |
| SPEED | 15 CASES/MIN |
| MAX. CASE DIMENSIONS | 500MM (L) X 345MM (W) X 500MM (H) |
| MIN. CASE DIMEISNONS | 175MM (L) X 120MM (W) X 120MM (H) |

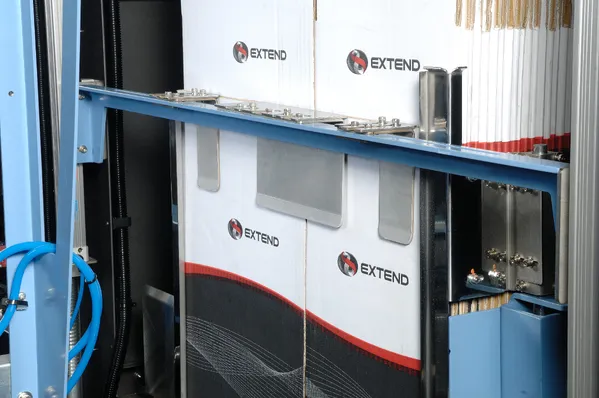

| BOX MAGAZINE CAPACITY | 150-200 CASES* *200 CASES BY B-FLUTES 3MM |
