SIAT ONEWRAP - Semi-Automatic Pallet Wrapper

Features a IP65 Control Panel


ONEWRAP - Semi-Automatic Pallet Wrapper

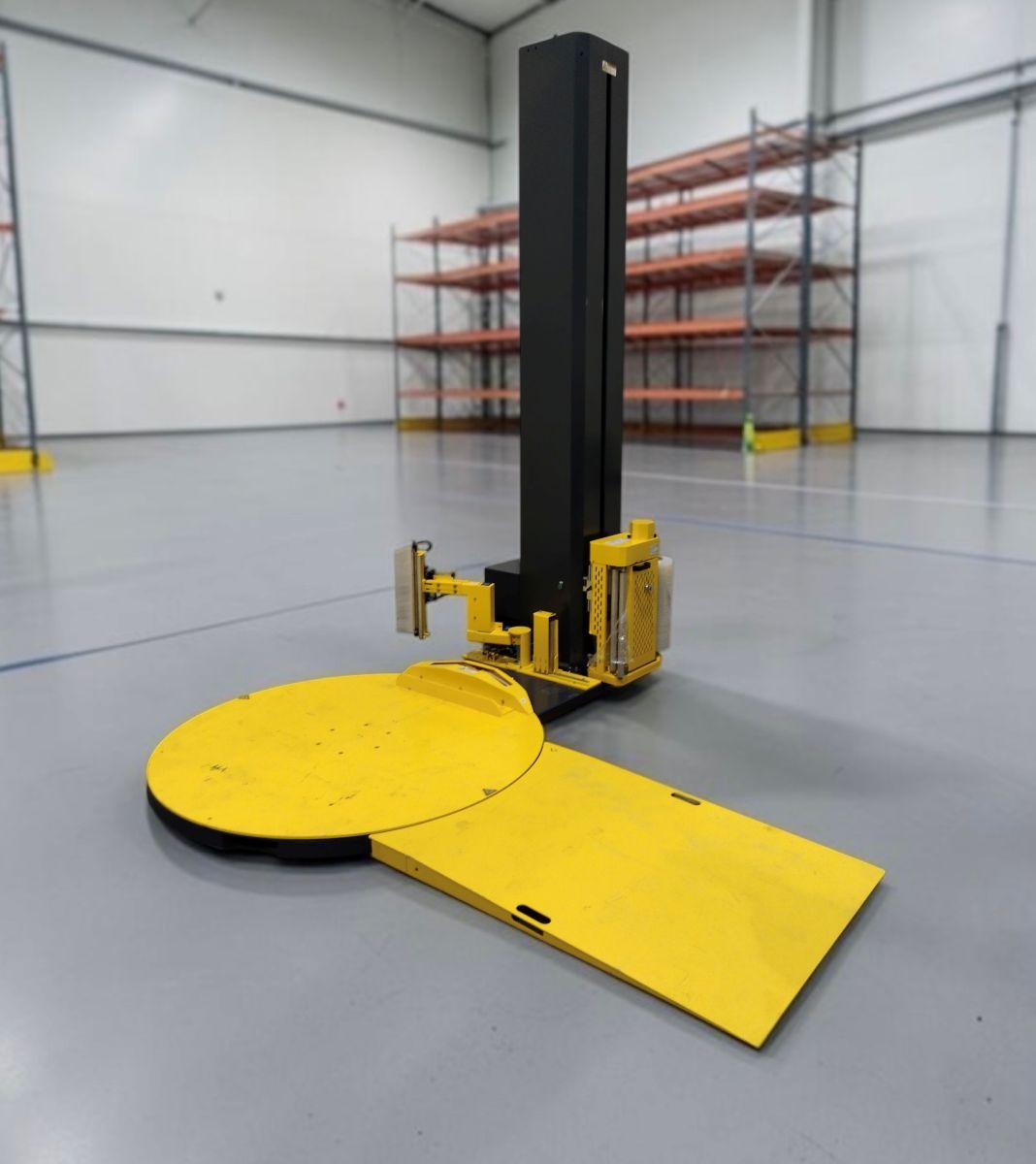

The SIAT OneWrap is a semi-automatic stretch wrapper equipped with an IP65-rated control panel featuring dual digital displays. These displays allow easy adjustment of parameters such as speed, number of wraps, and more. The control panel has a sleek, modern design with intuitive icons for ease of use. The OneWrap can be programmed with up to 10 different settings, ensuring consistent wrapping cycles for specific products. It can be configured with either mechanical or electromagnetic brakes, as well as mechanical or powered pre-stretch film carriages. This makes the OneWrap an ideal solution for most common pallet wrapping needs.

Turntable

  • 75mm low profile
  • 1650mm diameter
  • Heavy duty chain and sprocket drive
  • 2400kg capacity weight
  • Variable speed from 6 to 13 rpm
  • Soft Start Turntable motor

Film Carriage

  • Mechanical brake stretch system(m)/Power Pre-stretch carriage (LP)
  • Easy load film system
  • Max pallet height 2200mm
  • Auto pallet height sensor, adjustable for clear or black film
  • Anti-crush switch on carriage
  • Belt driven carriage

Control Panel

A two digital display is used to visualise the parameters to be adjusted such as speed, number of wraps etc

  • Safety emergency stop
  • Turntable start and stop
  • Programable: number of wraps top and bottom
  • Multiple wrap programs can be stored
  • Semi-auto function includes: two automatic wrap cycle
  • Top sheet application mode
  • Manual mode
  • Pallet height photocell
  • Cycle can be stopped at any point and then continued, very useful for corner protection application
  • IP65 control panel



Options

  • Ramp for hand pallet truck
  • 2.4m mast height
  • Control Panel heater
  • Scales
  • Stainless steel version
  • 1800mm turntable

Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


Code Product
1-GPPW-ONEWRAP

Code: 1-GPPW-ONEWRAP

SIAT ONEWRAP - Semi-Automatic Pallet Wrapper
Price on Application
.
