SIAT ONEWRAP - Semi-Automatic Pallet Wrapper

ONEWRAP - Semi-Automatic Pallet Wrapper

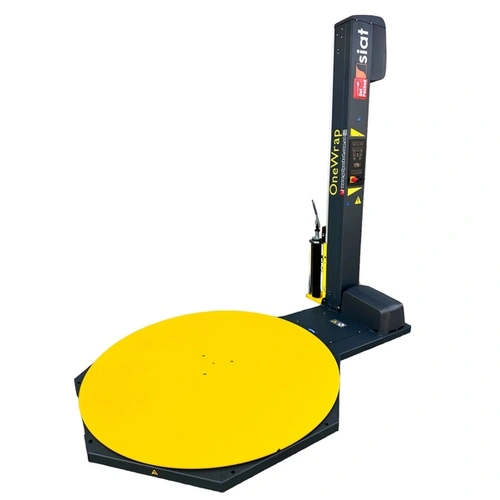

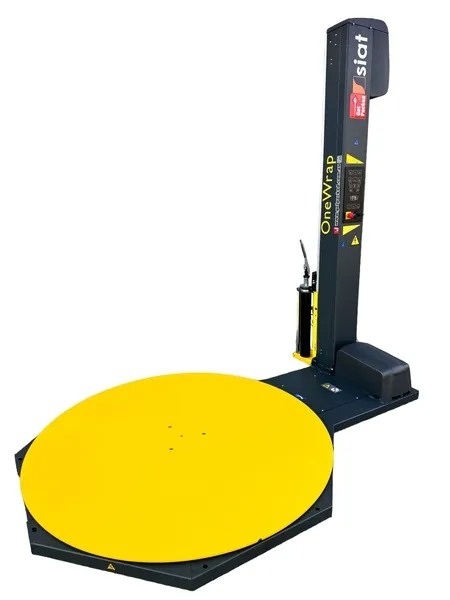

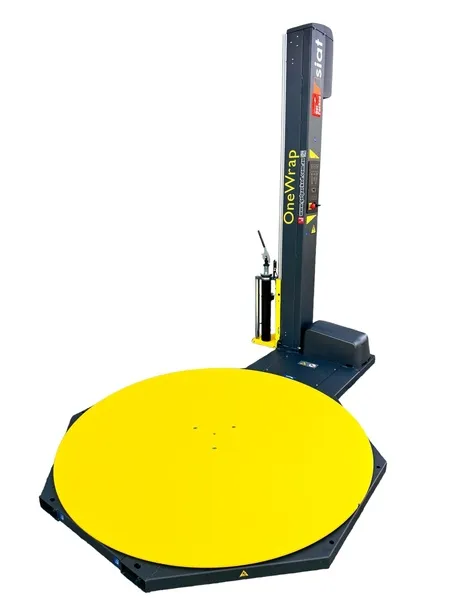

The SIAT OneWrap is a semi-automatic stretch wrapper equipped with an IP65-rated control panel featuring dual digital displays. These displays allow easy adjustment of parameters such as speed, number of wraps, and more. The control panel has a sleek, modern design with intuitive icons for ease of use. The OneWrap can be programmed with up to 10 different settings, ensuring consistent wrapping cycles for specific products. It can be configured with either mechanical or electromagnetic brakes, as well as mechanical or powered pre-stretch film carriages. This makes the OneWrap an ideal solution for most common pallet wrapping needs.

Turntable

75mm low profile
1650mm diameter
Heavy duty chain and sprocket drive
2400kg capacity weight
Variable speed from 6 to 13 rpm
Soft Start Turntable motor

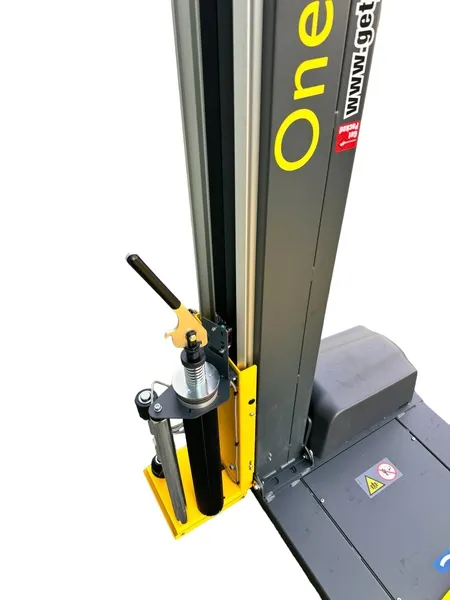

Film Carriage

Mechanical brake stretch system(m)/Power Pre-stretch carriage (LP)
Easy load film system
Max pallet height 2200mm
Auto pallet height sensor, adjustable for clear or black film
Anti-crush switch on carriage
Belt driven carriage

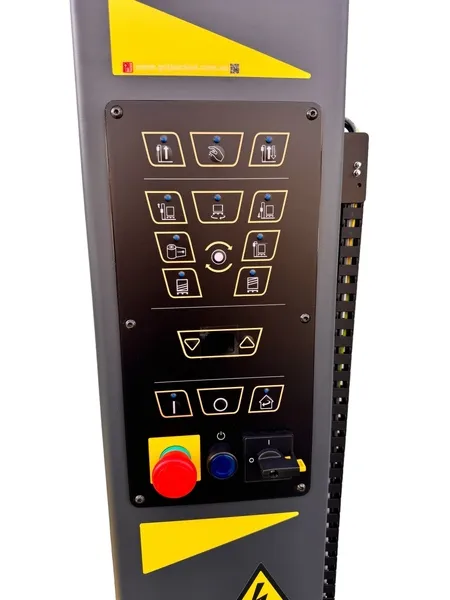

Control Panel

A two digital display is used to visualise the parameters to be adjusted such as speed, number of wraps etc

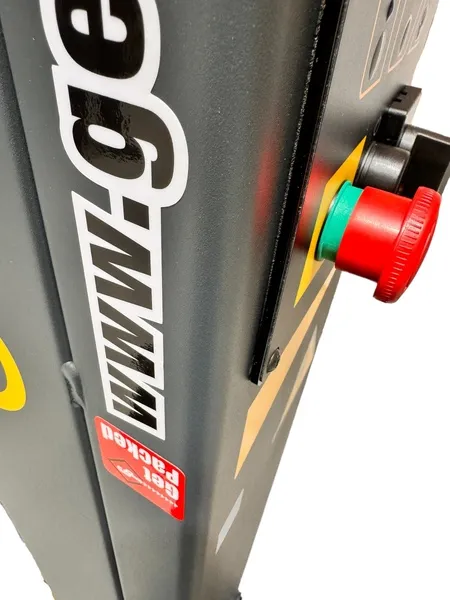

Safety emergency stop
Turntable start and stop
Programable: number of wraps top and bottom
Multiple wrap programs can be stored
Semi-auto function includes: two automatic wrap cycle
Top sheet application mode
Manual mode
Pallet height photocell
Cycle can be stopped at any point and then continued, very useful for corner protection application
IP65 control panel
