Orbital Wrapper - Semi-Automatic Horizontal Spiral Wrapping

Horizontal stretch wrapping for long profile products

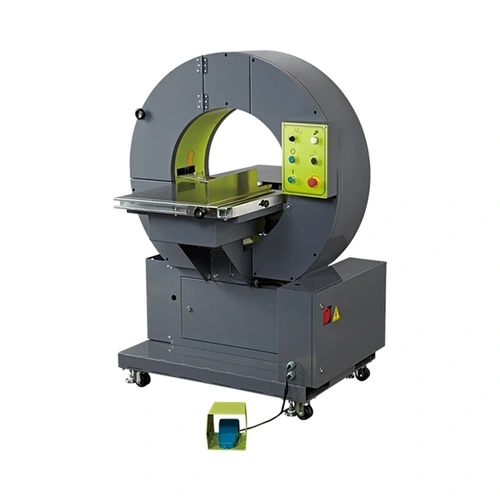

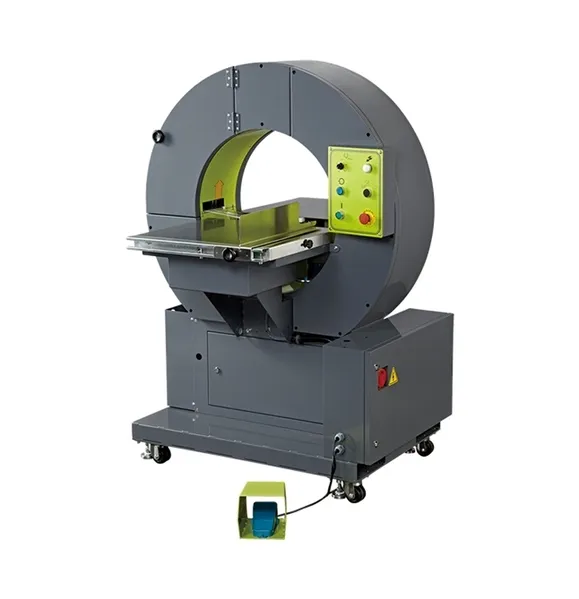

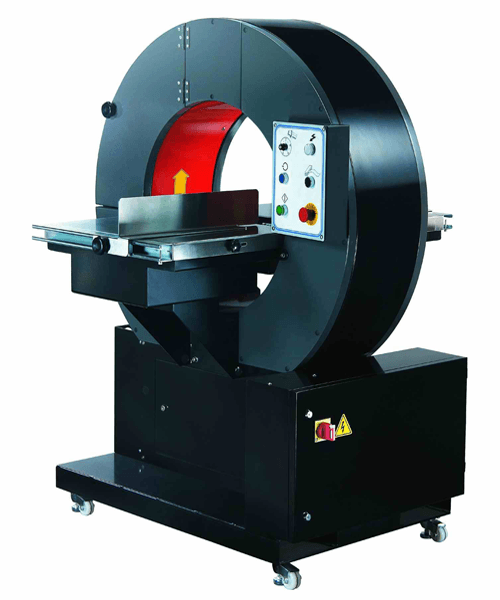

Orbital Wrapper |  Horizontal Spiral Wrapper - Semi-Automatic

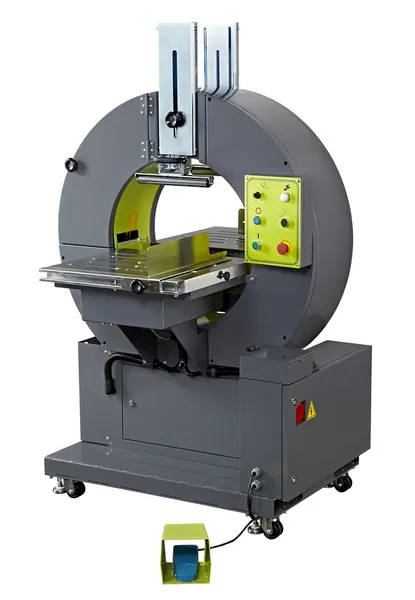

These machines are specially designed for the wrapping of long objects with stretch film, including carpets, textiles, tubes, battens, and other extended profiles. It proves particularly useful when other wrapping machines are impractical, such as when dealing with small perimeter wrapping goods or when a more delicate and secure fixation is required. The machine is well-suited for medium-frequency wrapping tasks and has stainless steel input and output work tables. It can bundle items together securely or protect items like window frames from scratching during transportation or while on a store display. The operation is straightforward: the item is inserted horizontally into the opening or ring of the Orbital Wrapper, and the film rotates around the object, covering it with stretch film or plastic for added protection. The 1-OWEXR-401 Orbit Wrapper is a semi-automatic horizontal wrapping machine that shares similarities with the 1-OWEXR-301 machine; however, it boasts an additional feature that allows for film fixing at the beginning of the wrapping cycle and cutting at the end of the cycle.

Please go to the More Information Tab above to look at the brochure and specs.





 Brochure

LDPE film width mm: 76, 100 and 125
Film thickness micron: 19 to 35
Wraps: adjustable 3 to 11
Max. rectangle mm: 508 x 178
Max. diam. mm: 330
Min. diam. mm: 102
Max. square mm: 305 x 305
Min. square mm: 102 x 102
Power supply: single phase 240v
Air supply: 6 bar (+/- 1 bar)



Be The First To Review This Product!

Help other Get Packed Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


Code Product
1-OWGP40

Code: 1-OWGP40

Orbital Stretch Wrapper - 102mm-305mm
Price on Application
1-OWGP40F

Code: 1-OWGP40F

Film for Orbital Stretch Wrapper - OWGP40 - 100mm x 600m x 23um Stretch Film
Price on Application
1-OWGP50

Code: 1-OWGP50

Orbital Stretch Wrapper - 470mm diameter
Price on Application
1-OWGP50F

Code: 1-OWGP50F

Film for OWGP50 - 100mm x 1000m x 23um Stretch Film
Price on Application
.
.
