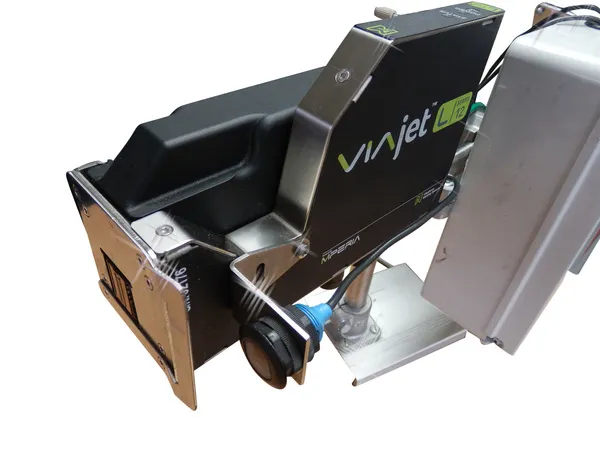

VIAjet Thermal Inkjet Coding System L-SERIES

VIAjet™ Thermal Inkjet Coding System L-SERIES

These thermal ink jet printers will print variable data or simple text as well as graphics and logos at unprecedented speeds with high quality resolution on cardboard or plastic. The VIAjet™ L-Series with its advanced nozzle design for exceptional print quality and reduced ink consumption uese the patented Lexmark delivery system that provides 600 x 600 dpi at over 60m/minute. The L-Series is a cost effective solution to labels allowing you to print directly onto the product with various inks for porous or non-porous surfaces. These Ink Jet printers are very low maintenance and no servicing as every time you add a new print cartridge you are changing the printhead.

In line Ink Jet printers such as the VIAjet L-Series are perfect to add to production lines with cartons sealers or shrink wrappers to add batch codes, barcodes, QR codes, best before, used by dates or simple you company details to your items.

Technical Specifications

L12 1 12.7 mm 488 m/min 6.4 mm W87 x H129 x L210 mm
L25 2 25.4 mm 488 m/min 6.4 mm W133 x H129 x L210 mm
L50 4 50.8 mm 365 m/min 6.4 mm W224 x H133 x L210 mm

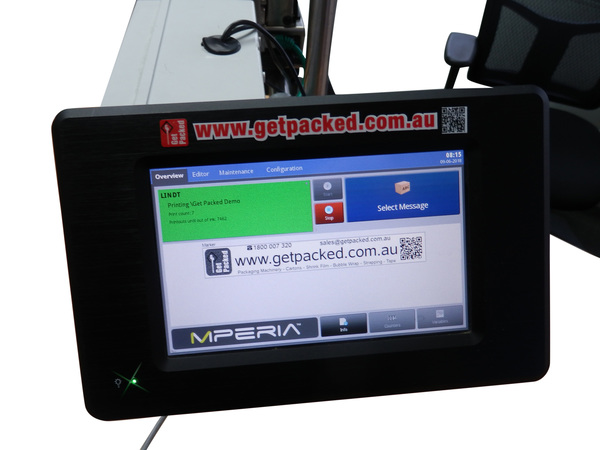

Print Control Module (PCM) – Touch Screen interface

– Built-in CSV database
– IP20, IP65 rating (Optional 15”)
– Network ready
– Simple message creation & editing
– Application specific plugins
– Available in 7”, 12”, 15” sizes
– Intuitive program design
– Windows print driver

Print Features

– Static and dynamic text fields
– Date and time codes
– True type fonts with desity settings
– Barcodes (ITF, ITF-14, Code 39, EAN8,EAN13, UPC-A, Code 128, GS1-128, GS1- Datamatrix, QR codes)
– Logos
– Sequential and batch counters
– Bi-directional printing

Communications & Networking

– Ethernet
– RS232
– USB
– Virtual network computing (VNC)

Electrical

– 100-240 VAC, 50-60 Hz, 0.8 A

Operating Temperature

– 10-40°C

Humidity

–10-95% RH (non-condensing)

Max Number of L-Series

Cartridges that can be Controlled – 8 (4 for 7” models)

Options

– Photocell
– Mounting clamps & Strands
– Warning Light
– On board image editor for 7” PCM
– Encoder
– Hand Scanner
– Bulk delivery system

This package includes:
• 1 X L-Series 7” Controller
• 1 X L-Series Single Pen Printhead Marker
• 1 X Printhead Bracketry
• 1 X Controller Bracketry
• 1 X Power Supply
• 1 X Product Manual
• 1 X Assembly Guide
• 1 X Black Ink Cartridges
Whilst this printer is easy to self-install and use, however should you prefer us to install, this can be
organised for an additional charge.
